Requirements of the DEMO PROJECT

1. Material requirements

· Tile size*: 300x600, 600x600, 400x800 and 800x800 mm.

· Tile color**: light prefered. No black tile.

· Pattern***: staggered pattern is not supported.

2. Space for demo

· We aim at a 1-week demo (5 working days)

· Roughly > 300 ㎡ needed

· Preferably open space

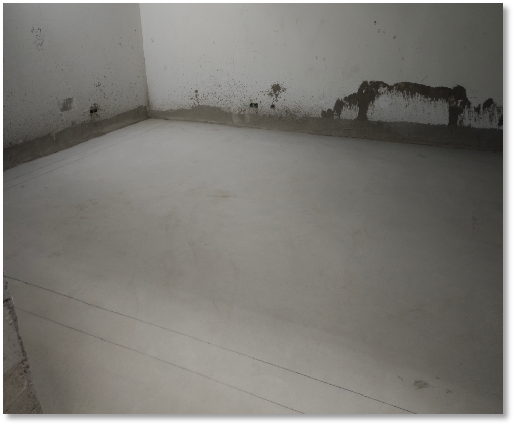

3. Floor prerequisites

· Clean the dust and remove the obtacles

· Flatness: 3 mm/2 m, peak-to-valley within 5 mm recommended; 5 mm/2 m, peak-to-valley within 15 mm compulsory.

4. Preparation

· Tile layout file Tiles and mortar in position

5. Robot transportation

· Vertical：elevator which can take > 900 kg, width > 900 mm and depth > 1300 mm.

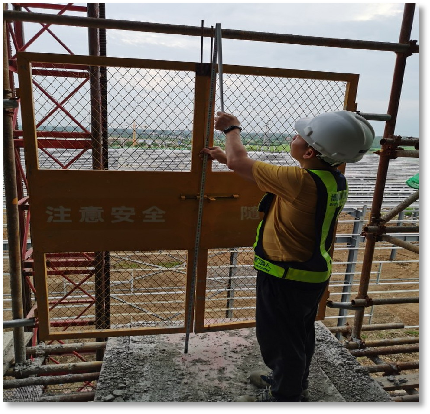

· Horizontal: door size height ≥1800mm, width≥900mm；clarance for passage≤50mm，step height≤30mm，slope≤10°

6. Supply

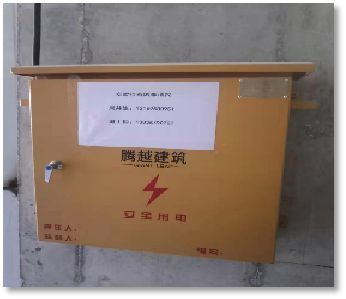

· 5 kW electricity power supply

· Water supply for mixing and cleaning

· Lighting

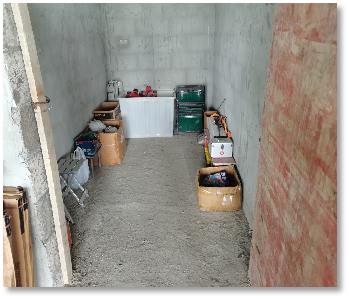

7. Storage

· Avoid high temp and humid

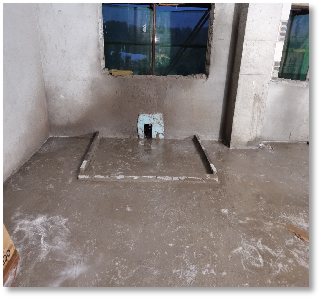

8. Cleaning

· Proper drain for the waste

​​​​​​​

Criteria of success

1. General Productivity

Data recordinag starts on Day 3, when the laborers from the host get a chance of gettting familiar with working with the robot.

We expect the host to pick laborers who are willing to embrace new technology.

2. Quality of the tile installation

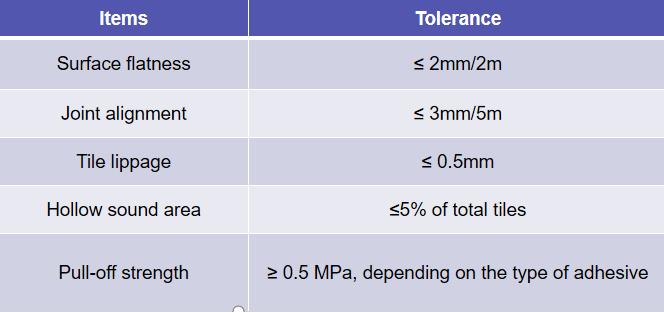

We expect to understand the LOCAL standard of quality for tile installation and the measures to check the quality during or after the tile installation Here is the Chinese standards for reference
